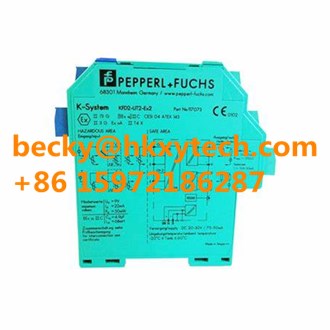

Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Features of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Universal Temperature Converter KFD2-UT2-Ex2

2-channel isolated barrier

24 V DC supply (Power Rail)

Thermocouple, RTD, potentiometer or voltage input

Usable as signal splitter (1 input and 2 outputs)

Current output 0/4 mA ... 20 mA

Sink or source mode

Configurable by PACTware

Line fault (LFD) and sensor burnout detection

Up to SIL 2 acc. to IEC 61508/IEC 61511

Technical data of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Product Description of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Current output 0/4 mA ... 20 mA

General specifications of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Signal type Analog input

Functional safety related parameters of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Safety Integrity Level (SIL) SIL 2

Supply of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Connection terminals 14+, 15- or power feed module/Power Rail

Rated voltage 20 ... 30 V DC

Ripple within the supply tolerance

Power dissipation/power consumption ≤ 1.53 W / 1.53 W

Interface of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Programming interface programming socket

Input of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Connection side field side

Connection terminals 1, 2, 3; 4, 5, 6

RTD type Pt10, Pt50, Pt100, Pt500, Pt1000 (EN 60751: 1995)

type Pt10GOST, Pt50GOST, Pt100GOST, Pt500GOST, Pt1000GOST (6651-94)

type Cu10, Cu50, Cu100 (P50353-92)

type Ni100 (DIN 43760)

Measuring current approx. 200 µA with RTD

Types of measuring 2-, 3-wire connection

Lead resistance max. 50 Ω per line

Measurement loop monitoring sensor breakage, sensor short-circuit

Thermocouples type B, E, J, K, N, R, S, T (IEC 584-1: 1995)

type L (DIN 43710: 1985)

type TXK, TXKH, TXA (P8.585-2001)

Cold junction compensation external and internal

Measurement loop monitoring sensor breakage

Potentiometer 0 ... 20 kΩ (2-wire connection), 0.8 ... 20 kΩ (3-wire connection)

Voltage selectable within the range -100 ... 100 mV

Input resistance ≥ 1 MΩ (-100 ... 100 mV)

Output of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Connection side control side

Connection output I: terminal 7: source (-), sink (+), terminal 8: source (+), terminal 9: sink(-)

output II: terminal 10: source (-), sink (+), terminal 11: source (+), terminal 12: sink(-)

Output I, II Analog current output

Current range 0 ... 20 mA or 4 ... 20 mA

Fault signal downscale 0 or 2 mA, upscale 21.5 mA (acc. NAMUR NE43)

Source load 0 ... 550 Ω

open-circuit voltage ≤ 18 V

Sink Voltage across terminals 5 ... 30 V. If the current is supplied from a source > 16.5 V,

series resistance of ≥ (V - 16.5)/0.0215 Ω is needed, where V is the source voltage.

The maximum value of the resistance is (V - 5)/0.0215 Ω.

Transfer characteristics of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Deviation

After calibration Pt100: ± (0.06 % of measurement value in K + 0.1 % of span + 0.1 K (4-wire connection))

thermocouple: ± (0.05 % of measurement value in °C + 0.1 % of span + 1 K (1.2 K for types R and S))

this includes ± 0.8 K error of the cold junction compensation

mV: ± (50 µV + 0.1 % of span)

potentiometer: ± (0.05 % of full scale + 0.1 % of span, (excludes errors due to lead resistance))

Influence of ambient temperature deviation of CJC included:

Pt100: ± (0.0015 % of measurement value in K + 0.006 % of span)/K ΔTamb*)

thermocouple: ± (0.02 K + 0.005 % of measurement value in °C + 0.006 % of span)/K ΔTamb*)

mV: ± (0.01 % of measurement value + 0.006 % of span)/K ΔTamb*)

potentiometer: ± 0.006 % of span/K ΔTamb*)

*) ΔTamb = ambient temperature change referenced to 23 °C (296 K)

Influence of supply voltage < 0.01 % of span

Influence of load ≤ 0.001 % of output value per 100 Ω

Reaction time worst case value (sensor breakage and/or sensor short circuit detection enabled)

mV: 1.2 s, thermocouples with CJC: 1.4 s, thermocouples with fixed ref. temp: 1.4 s, 3- or 4-wire RTD: 1.1 s, 2-wire RTD: 920 ms, Potentiometer: 3-wire connection 2.8 s, 2-wire connection 2.25 s

Galvanic isolation of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Output/supply, programming input functional insulation, rated insulation voltage 50 V AC

There is no electrical isolation between the programming input and the supply.

The programming cable provides galvanic isolation so that ground loops are avoided.

Indicators/settings of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Display elements LEDs

Configuration via PACTware

Labeling space for labeling at the front

Directive conformity of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Electromagnetic compatibility

Directive 2014/30/EU EN 61326-1:2013 (industrial locations)

Conformity of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Electromagnetic compatibility NE 21:2006

Degree of protection IEC 60529:2001

Protection against electrical shock UL 61010-1:2004

Ambient conditions of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Ambient temperature -20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Degree of protection IP20

Connection screw terminals

Mass approx. 130 g

Dimensions 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) , housing type B2

Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001

Data for application in connection with hazardous areas of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

EU-type examination certificate CESI 04 ATEX 143

Marking Ex-Hexagon II (1)G [Ex ia Ga] IIC

Ex-Hexagon II (1)D [Ex ia Da] IIIC

Ex-Hexagon I (M1) [Ex ia Ma] I

Input Ex ia

Inputs terminals 1, 2, 3, 4, 5, 6 (for passive equipment)

Voltage Uo 9 V

Current Io 22 mA

Power Po 50 mW

Analog outputs, power supply, collective error

Maximum safe voltage 250 V (Attention! This is not the rated voltage.)

Interface

Maximum safe voltage 250 V (Attention! The rated voltage is lower.), RS 232

Certificate TÜV 02 ATEX 1797 X

Marking Ex-Hexagon II 3G Ex nA II T4

Galvanic isolation

Input/Other circuits safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V

Directive conformity

Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 , EN 50303:2000

International approvals of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

UL approval

Control drawing 116-0410

CSA approval

Control drawing 116-0314 (cCSAus)

116-0347

IECEx approval

IECEx certificate IECEx TUN 07.0003

IECEx CML 16.0126X

IECEx marking [Ex ia Ga] IIC

[Ex ia Da] IIIC

[Ex ia Ma] I

Ex nA IIC T4 Gc

General information of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Classifications of Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter KFD2-UT2-Ex2 Safety Barriers Arrived

System Classcode

ECLASS 11.0 27210129

ECLASS 10.0.1 27210129

ECLASS 9.0 27210129

ECLASS 8.0 27210190

ECLASS 5.1 27210107

ETIM 8.0 EC002919

ETIM 7.0 EC002919

ETIM 6.0 EC002919

ETIM 5.0 EC001485

UNSPSC 12.1 32101514
